resistnace heating lab furnace -凯发备用官网

the equipment mainly used in the ht heating treatment on carbon material,carbon nano,carbon fiber,negative electrode materials,graphite powder,contacting terminal material and such related material.

introduction

application:
the equipment mainly used in the ht heating treatment on carbon material,carbon nano,carbon fiber,negative electrode materials,graphite powder,contacting terminal material and such related material.

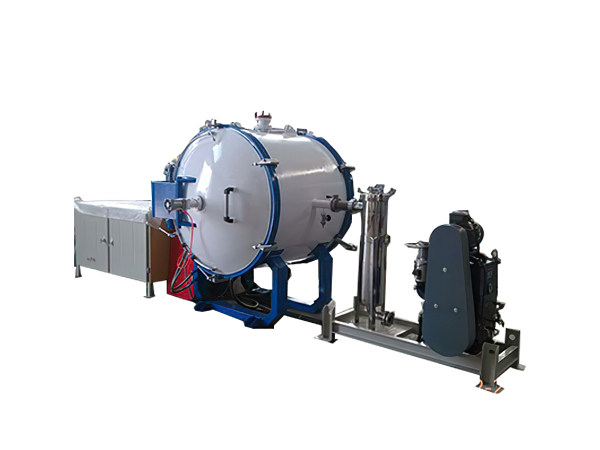

the furnace picture:

all our furnace can be custom made:

item / model		nti-thl-54w
working size （l×w×h）	mm	300x300x600
heating type	/	graphite rod
power control	/	thyristor controlled
max. capacity	l	54
loading capacity	g	ht area capacity × product’s density(g/cm³)×1000 1l=1000cm³
input voltage	/	380v±10%，50hz/60hz 3 phase 5 wire
equipment structure	/	one power to one or two or four furnace
type	/	horizontal
power	kw	50
max. temperature	℃	1600
working tem.	℃	1500
tem.uniformity	℃	±5
working environment	/	vacuum or argon、n2 atmosphere environment (micro-positive pressure)
