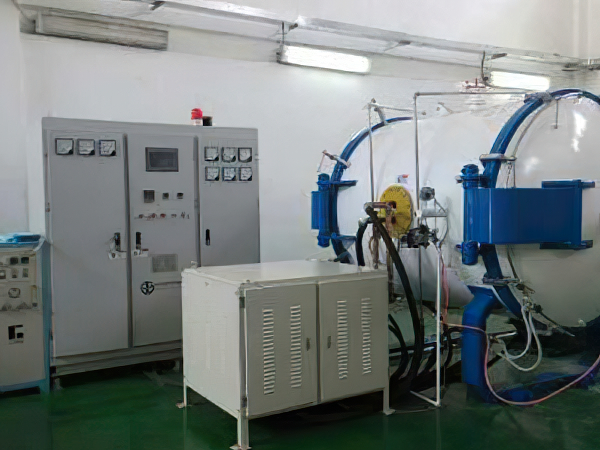

the pics of furnace:
|
model parameter |
lab usage |
production usage |
|||||
|
nti-sjl-54w |
nti-sjl-98w |
nti-sjl-300w |
nti-sjl-400w |
nti-sjl-1280w |
nti-sjl-1620w |
||
|
working size |
mm |
300×300×600 |
350×350×800 |
500×500×1200 |
500×500×1600 |
800×800×2000 |
900×900×2000 |
|
heating type |
/ |
if induction heating |
|||||
|
crucible |
/ |
graphite |
|||||
|
control type |
/ |
thyristor control or igbt control ( optional ) |
|||||
|
ht zone capacity |
l |
54 |
98 |
300 |
400 |
1280 |
1620 |
|
loading weight |
g |
ht zone capacity × density (g/cm³)×1000 remark：1l=1000cm³ |
|||||
|
ultimate vacuum |
pa |
20 |
|||||
|
if power |
kw |
120 |
160 |
200 |
250 |
400 |
600 |
|
max. working temperature |
℃ |
2500 |
2500 |
2500 |
2500 |
2500 |
2500 |
|
usual working temperature |
℃ |
2400 |
2400 |
2400 |
2400 |
2400 |
2400 |
|
temperature unifomity |
℃ |
±10 |
±10 |
±10 |
±10 |
±10 |
±10 |
|
overall dimension |
mm |
|
|
|
|
|
|
|
weight |
kg |
|
|
|
|
|
|
|
working environment |
/ |
vacuum or argon atmosphere protection( micro positive pressure) |
|||||
you can customize it as per your real requirement.
feature:
1.furnace door：rotary hinge; manual / automatic lock tight
2.furnace shell：all carbon steel/stainless steel inner/all stainless steel
3.furnace inner liner ：soft carbon felt and hard composite felt / full hard composite felt
4. heater material: static pressuregraphite / three-high graphite molding
5.furnace body：vertical type/ horizontal type
6.gas circuit control：volume/mass flow-meter；manual value/automatic value；import/domestic
7.vacuum pumps and vacuum gauges: import / domestic
8. skip: raceway / forklift
9.operation panel：analog screen / touch screen / industrial control machine
10.plc：delta / omron / siemens / mitsubishi
11.temperature control instrument: shimaden /oulu
12. temperature measuring type: infrared optics temperature measuring instrument/ c index number thermocouple (wolfram / mo / ceramic bushing）
13. recorder: paperless recorder / paper recorder; import / domestic
14. electrical element: chint / schneider / siemens /abb
