model no |
nti-sml-4l |
nti-sml-9l |
|
ultimate working temperature |
3200℃ |
3000℃ |
|
usual working temperature |
3000℃ |
2800℃ |
|
input power |
380v±10%，50hz/60hz, 3 phase |
380v±10%，50hz/60hz, 3 phase |
|
rated power |
60 kw |
75kw |
|
intermediate frequency |
2500hz |
2500hz |
|

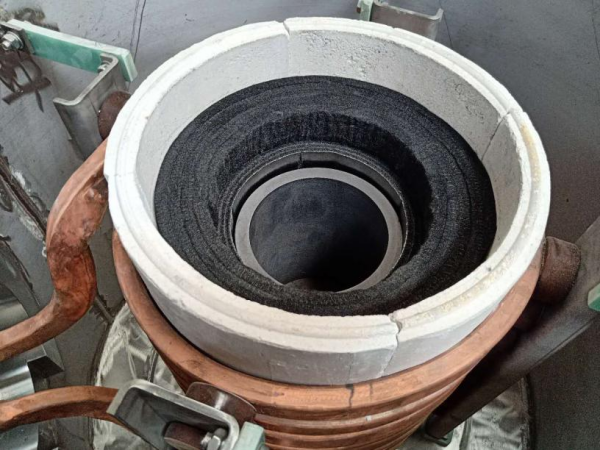

working size |
φ 150 × l 250 mm |
φ 200 × l 300 mm |
|
workable capacity |
4l |
9l |
|
control type |
igbt control |
igbt control |
|

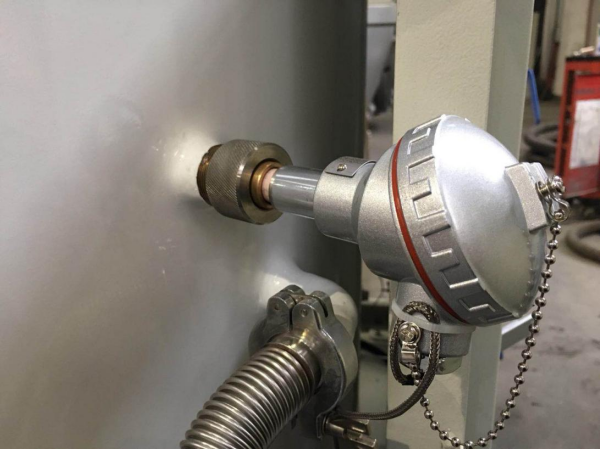

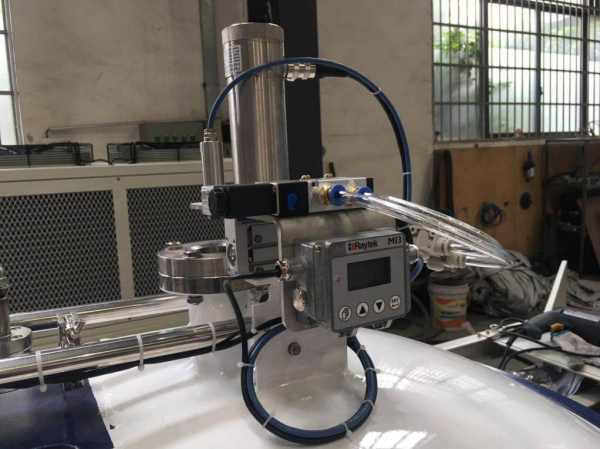

temperature measure |
american raytek infrared tem.measure（1000℃--3200℃）±0.75% full range. american raytek temperature measure 250-1400℃ |
american raytek infrared tem.measure（1000℃--3200℃）±0.75% full range. american raytek temperature measure 250-1400℃ |
|
temperature control |
japanese shimaden fp93 |
japanese shimaden fp93 |
|
exhaust type |
auto. exhaust |
auto. exhaust |
|
temperature uniformity |
≤±10℃。remark:：after keeping temperature for 30min. |
≤±10℃。remark:：after keeping for 30min. |
|
inside working atmosphere |
vacuum or argon（micro positive pressure） |
vacuum or argon（micro positive pressure） |
|
protection type |
plc aptitude early warming, warming and power safety protection. |
plc aptitude early warming, warming and power safety protection. |
|

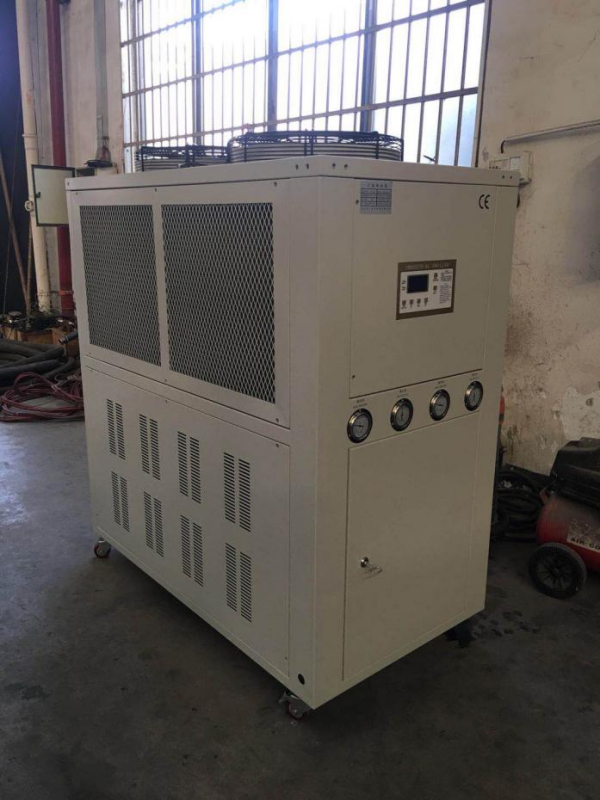

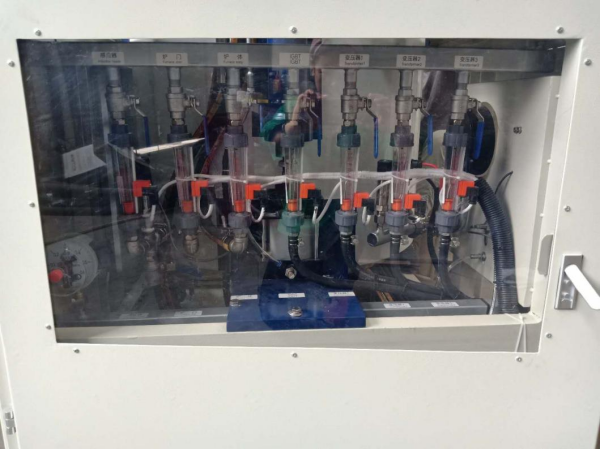

cooling type |
closed inner circulating water cooling system: chiller nti-lsj-120 |
closed inner circulating water cooling system: chiller nti-lsj-120 |
|
gas purifier |
model: nti-qtjh-4 |
model: nti-qtjh-4 |
|

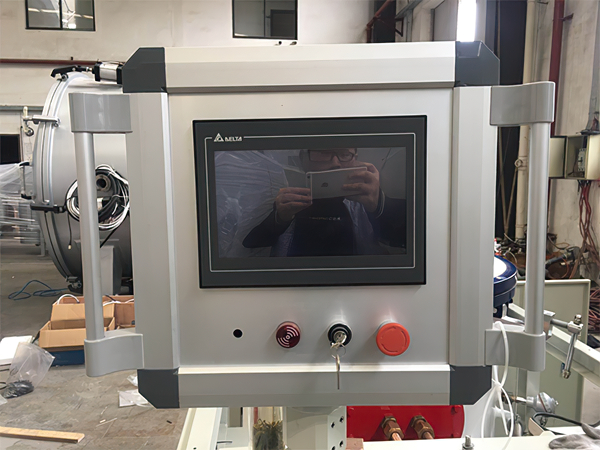

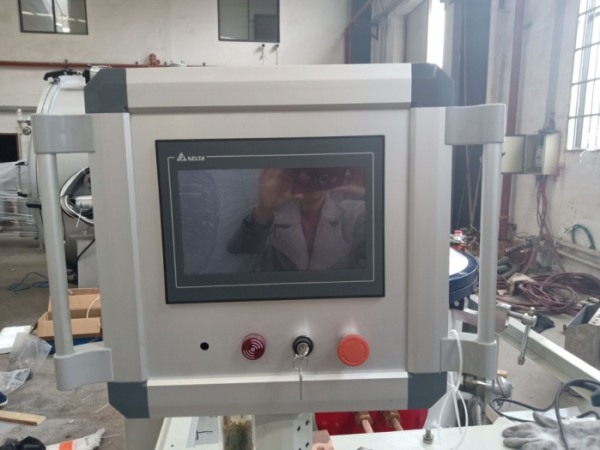

ipc |
nuotian technology touch screen tpc1071 and simens plc smart-200 |
nuotian technology touch screen tpc1071and simens plc smart-200 |
|

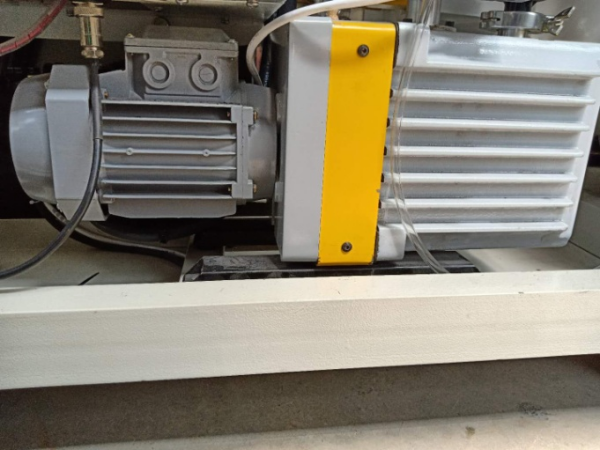

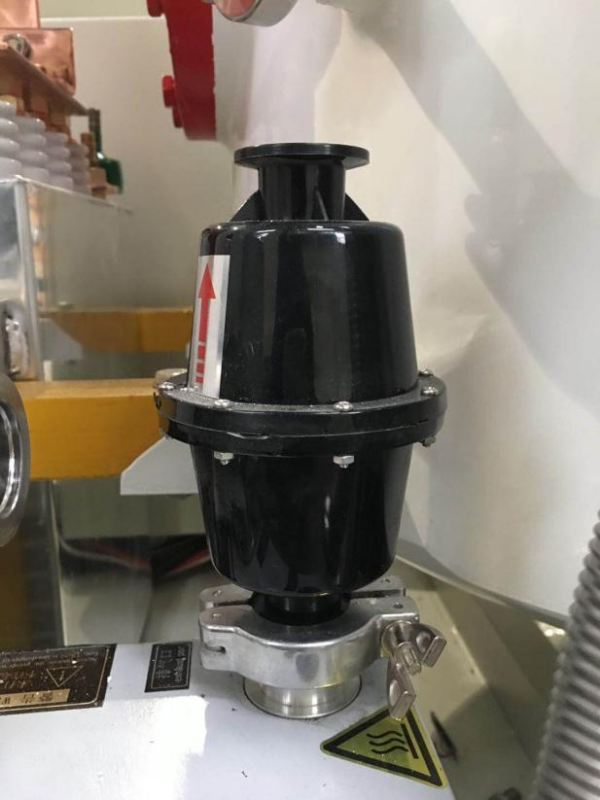

vacuum system |
rotary-vane vacuum pump 2x-4, vacuum valve, pipe and vacuum instrument. |
rotary-vane vacuum pump 2xz-4, vacuum valve, pipe and vacuum instrument. |
|

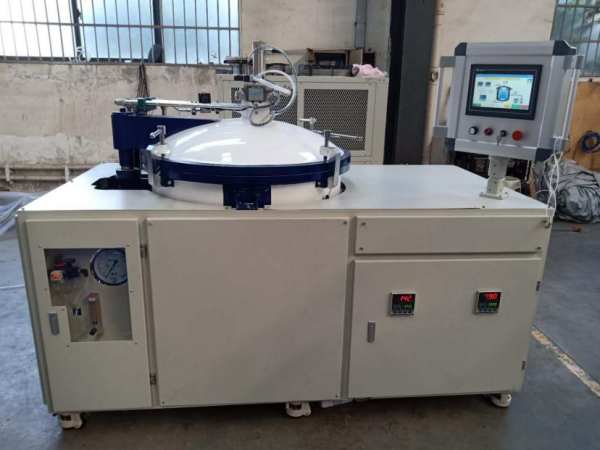

furnace outer size |
l2000×w1000×h1600mm |
l2200×w1200×h1800mm |
|
chiller outer size |
l1500xw720xh1500mm |
l1500xw720xh1500mm |
|
equipment weight |
2t |
2.5t |
